Non-pressure pipes
Pressure pipes
Non-pressure couplings
Pressure couplings
Flush joints
Other joints and couplings
Standard fittings
Manholes
Centrifugally cast Hobas pipe designed for exceptional acid resistance. Typically used for sewer, drainage, and stormwater applications. Water jetting resistant according to DIN 19523.
| Diameter range (DN) | 200-3600 mm |
| Pressure (PN) | 1 bar |
| Nominal lengths | 6, 3 m |
| Stiffness (SN) | 10000 N/m² |
Filament wound Flowtite pipe designed for exceptional acid resistance. Typically used for sewer and stormwater applications. Water jetting resistant according to DIN 19523.
| Diameter range (DN) | 300-3000 mm |
| Pressure (PN) | 1 bar |
| Nominal lengths | 12, 6, 3 m |
| Stiffness (SN) | 10000 N/m² |
Hobas pipe designed for exceptional wear resistance and low head loss. Typically used for sewer, drainage, and stormwater applications. Water jetting resistant according to DIN 19523.
| Diameter range (DN) | 1200-3600 mm |
| Pressure (PN) | 1 bar |
| Nominal lengths | 6, 3 m |
| Stiffness (SN) | 10000 N/m² |
Flowtite pipe with main reinforcement in the hoop direction. Used in applications without pressure end thrust, for example penstocks, pressure mains, water supply, and cooling water.
| Diameter range (DN) | 300-4000 mm |
| Pressure (PN) | up to 32 bar |
| Nominal lengths | 12, 6, 3 m |
| Stiffness (SN) | 5000/10000 N/m² |
Extra impact resistant, uniaxial pressure pipe with main reinforcement in the hoop direction. Used in hydropower, irrigation, water mains, and other pressure applications. Allows for backfill particle size up to 64 mm (sieve size).
| Diameter range (DN) | 300-4000 mm |
| Pressure (PN) | up to 32 bar |
| Nominal lengths | 12, 6, 3 m |
| Stiffness (SN) | 5000/10000 N/m² |
Flowtite pipe reinforced in the hoop and axial directions to resist pressure end thrust and bending loads. Common uses: cooling water, desalination, and other industrial above ground applications.
| Diameter range (DN) | 200-4000 mm |
| Pressure (PN) | up to 20 bar |
| Nominal lengths | 12, 6, 3 m |
| Stiffness (SN) | 5000/10000 N/m² |
Extremely wear-resistant uniaxial pressure pipe that is designed e.g. for mining slurry pipelines. Can also be used in other applications with extreme wear exposure and high flow velocities.
| Diameter range (DN) | 300-3000 mm |
| Pressure (PN) | up to 32 bar |
| Nominal lengths | 12, 6, 3 m |
| Stiffness (SN) | 5000/10000 N/m² |
Centrifugally cast Hobas pipe, typically used for penstocks, irrigation, water mains and other pressure applications.
| Diameter range (DN) | 200-2555 mm |
| Pressure (PN) | up to 24 bar |
| Nominal lengths | 6, 3 m |
| Stiffness (SN) | 5000/10000 N/m² |
Used in pressure and non-pressure pipelines.
| Diameter range (DN) | 200-2555 mm |
| Pressure (PN) | up to 24 bar |
| Angular deflection* | up to 3° |
* The degree of angular deflection is dependent on the pipe diameter. Contact your local supplier for more information.
Commonly used for sewer and stormwater applications with Flowtite pipes.
| Diameter range (DN) | 300-3000 mm |
| Pressure (PN) | 1 bar |
| Angular deflection* | up to 3° |
* The degree of angular deflection is dependent on the pipe diameter. Contact your local supplier for more information.
Alternative coupling for sewer and stormwater applications with Hobas pipes.
| Diameter range (DN) | 300-3600 mm |
| Pressure (PN) | 1 bar |
| Angular deflection* | up to 3° |
* The degree of angular deflection is dependent on the pipe diameter. Contact your local supplier for more information.
Used in pressure and non-pressure pipelines.
| Diameter range (DN) | 200-2555 mm |
| Pressure (PN) | up to 24 bar |
| Angular deflection* | up to 3° |
* The degree of angular deflection is dependent on the pipe diameter. Contact your local supplier for more information.
Commonly used for penstocks, water supply, irrigation and pressure sewer applications.
| Diameter range (DN) | 200-4000 mm |
| Pressure (PN) | up to 32 bar |
| Angular deflection* | up to 3° |
* The degree of angular deflection is dependent on the pipe diameter. Contact your local supplier for more information.
Flowtite coupling for increased angular deflections up to 3 degrees.
| Diameter range (DN) | 600-2500 mm |
| Pressure (PN) | up to 16 bar |
| Angular deflection* | 3° |
* The degree of angular deflection is dependent on the pipe diameter. Contact your local supplier for more information.
Biaxial joint used for applications where transfer of load between pipes is required.
| Diameter range (DN) | 200-2000 mm |
| Pressure (PN) | 6-16 bar |
| Angular deflection* | not applicable |
* The degree of angular deflection is dependent on the pipe diameter. Contact your local supplier for more information.
Field joints for pressure & gravity applications
Laminated field joints are available in uniaxial and biaxial designs. Amiblu provides the necessary instructions or skilled personnel for butt-wrap joining in pressure and non-pressure applications. Technologies developed by Amiblu provide faster and more cost-efficient installations.
Masonry couplings
The masonry coupling is used for connecting pipes to concrete shafts and walls. Masonry couplings are sanded for improved stability in concrete shafts. Masonry couplings can be delivered with pipe ring, and optionally with sealing tape. Lengths can be selected as required in consideration of the pipe joint data.
Mechanical couplings
Amiblu pipes can be joined using mechanical steel couplings such as tangential bolt couplings or axial bolt couplings.
Amiblu flanges
Amiblu manufactures and sells flanges in various designs and according to different standards and requirements. When connecting two GRP flanges, the standard bolt pattern to which flanges are manufactured is EN 1092. Other bolting dimension systems such as according to AWWA, ANSI, DIN, and JIS can be supplied.
| Diameter range (DN) | 200-4000 mm |
| Pressure (PN) | up to 32 bar |
| Diameter range (DN) | 200-4000 mm |
| Pressure (PN) | up to 32 bar |
| Diameter range (DN) | 200-4000 mm |
| Pressure (PN) | up to 32 bar |
| Diameter range (DN) | 200-4000 mm |
| Pressure (PN) | up to 32 bar |
| Diameter range (DN) | 200-4000 mm |
| Pressure (PN) | 1 bar |
| Diameter range (DN) | 200-4000 mm |
| Pressure (PN) | up to 10 bar |
Amiblu GRP manholes are made of glassfiber reinforced unsaturated polyester resin. They include a liner with glassfiber reinforcements for an expected higher chemical pollution of municipal wastewater. Shaft and chamber units comply with the requirements of EN14364 for underground drainage and sewage.
Amiblu manholes are custom-tailored to all sorts of operation requirements. In the case of deep installations as required e.g. on landfill sites, the manholes are designed with a bigger wall thickness to increase the structural stability.
Manholes are commonly delivered with berm, ladder, and manhole cover. Further accessories and manhole diameters are available on request. Standard Amiblu manholes meet the requirements of EN 15383.
| Diameter (DN) manhole | 800-3000 mm |
Manholes are commonly delivered with berm, ladder, and manhole cover. Further accessories and manhole diameters are available on request.
| Diameter (DN) main pipe | 1000-3000 mm |
| Diameter (DN) tangential manhole | 1000-1200 mm |

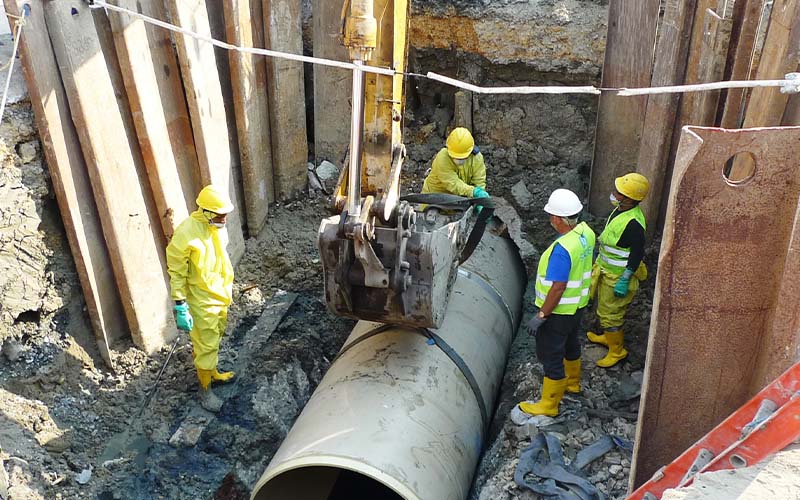

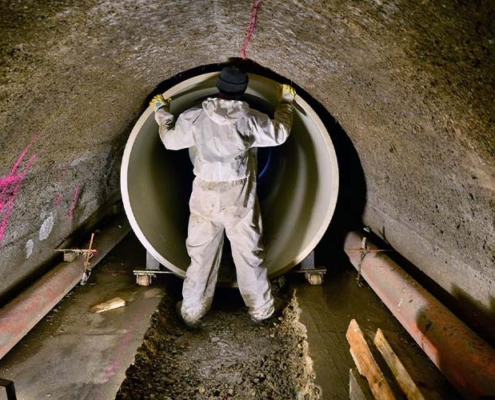

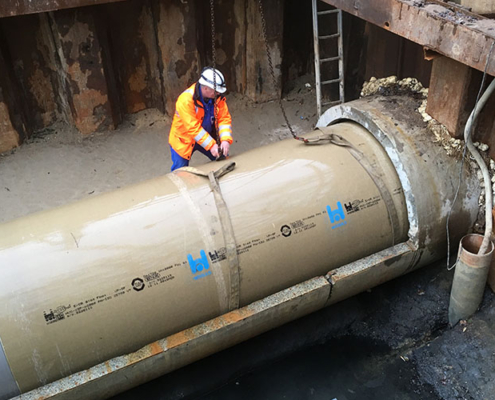

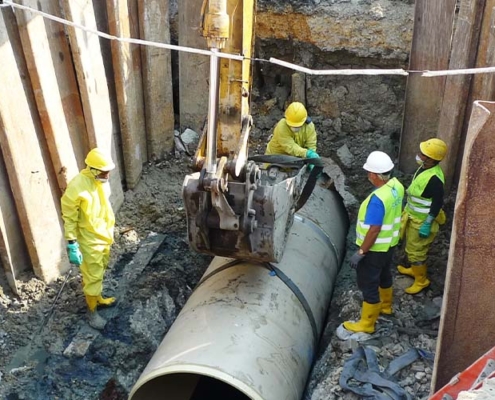

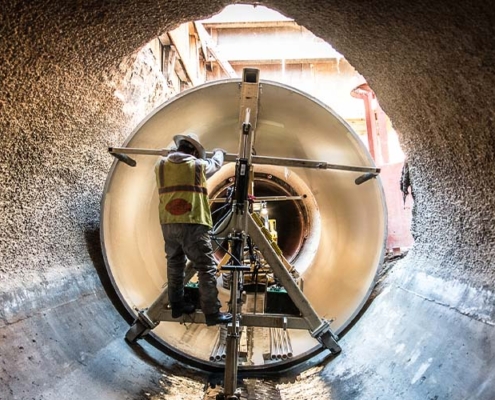

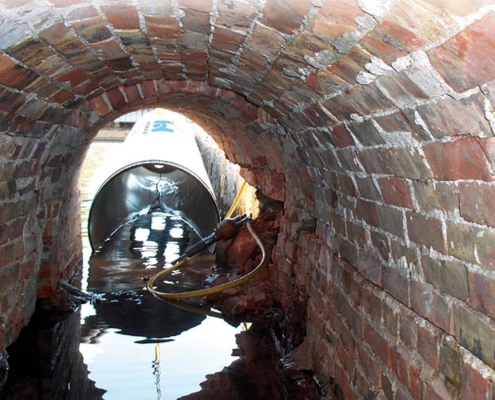

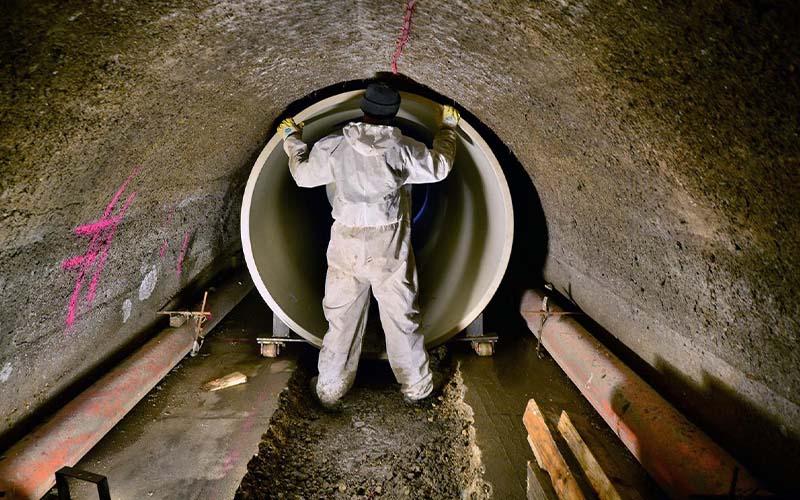

Commonly used for jacking and relining. Fits centrifugally cast and filament wound Amiblu pipes.
| Diameter range (DN) | 272-3600 mm |
| Pressure (PN) | up to 6 bar |
Commonly used for jacking and relining. Fits centrifugally cast and filament wound Amiblu pipes.
| Diameter range (DN) | 272-3600 mm |
| Pressure (PN) | up to 6 bar |
Commonly used for jacking and relining. Fits centrifugally cast and filament wound Amiblu pipes.
| Diameter range (DN) | 272-2500 mm |
| Pressure (PN) | up to 16 bar |
