Non-pressure pipes
Pressure pipes
Non-pressure couplings
Pressure couplings
Other joints and couplings
Standard fittings
Filament wound Flowtite pipe designed for exceptional acid resistance. Typically used for sewer and stormwater applications. Water jetting resistant according to DIN 19523.
| Diameter range (DN) | 300-3200 mm |
| Pressure (PN) | 1 bar |
| Nominal lengths | 12, 6, 3 m |
| Stiffness (SN) | 10000 N/m² |

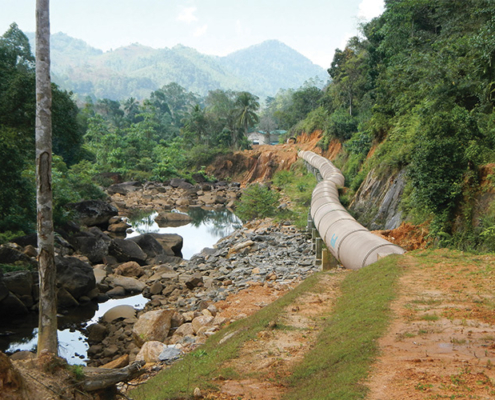

Flowtite pipe with main reinforcement in the hoop direction. Used in applications without pressure end thrust, for example penstocks, pressure mains, water supply, and cooling water.
| Diameter range (DN) | 300-4000 mm |
| Pressure (PN) | up to 32 bar |
| Nominal lengths | 12, 6, 3 m |
| Stiffness (SN) | 5000/10000 N/m² |
Flowtite pipe reinforced in the hoop and axial directions to resist pressure end thrust and bending loads. Common uses: cooling water, desalination, and other industrial above ground applications.
| Diameter range (DN) | 200-4000 mm |
| Pressure (PN) | up to 20 bar |
| Nominal lengths | 12, 6, 3 m |
| Stiffness (SN) | 5000/10000 N/m² |
Commonly used for sewer and stormwater applications with Flowtite pipes.
| Diameter range (DN) | 300-3000 mm |
| Pressure (PN) | 1 bar |
| Angular deflection* | up to 3° |
* The degree of angular deflection is dependent on the pipe diameter. Contact your local supplier for more information.
Commonly used for penstocks, water supply, irrigation and pressure sewer applications.
| Diameter range (DN) | 200-4000 mm |
| Pressure (PN) | up to 24 bar |
| Angular deflection* | up to 3° |
* The degree of angular deflection is dependent on the pipe diameter. Contact your local supplier for more information.
Flowtite coupling for increased angular deflections up to 3 degrees.
| Diameter range (DN) | 600-2500 mm |
| Pressure (PN) | up to 16 bar |
| Angular deflection* | up to 3° |
* The degree of angular deflection is dependent on the pipe diameter. Contact your local supplier for more information.
Biaxial joint used for applications where transfer of load between pipes is required.
| Diameter range (DN) | 200-2000 mm |
| Pressure (PN) | 6-16 bar |
| Angular deflection* | not applicable |
* The degree of angular deflection is dependent on the pipe diameter. Contact your local supplier for more information.
Field joints for pressure & gravity applications
Laminated field joints are available in uniaxial and biaxial designs. Amiblu provides the necessary instructions or skilled personnel for butt-wrap joining in pressure and non-pressure applications. Technologies developed by Amiblu provide faster and more cost-efficient installations.
Masonry couplings
The masonry coupling is used for connecting pipes to concrete shafts and walls. Masonry couplings are sanded for improved stability in concrete shafts. Masonry couplings can be delivered with pipe ring, and optionally with sealing tape. Lengths can be selected as required in consideration of the pipe joint data.
Mechanical couplings
Amiblu pipes can be joined using mechanical steel couplings such as tangential bolt couplings or axial bolt couplings.
Amiblu flanges
Amiblu manufactures and sells flanges in various designs and according to different standards and requirements. When connecting two GRP flanges, the standard bolt pattern to which flanges are manufactured is EN 1092. Other bolting dimension systems such as according to AWWA, ANSI, DIN, and JIS can be supplied.
| Diameter range (DN) | 200-4000 mm |
| Pressure (PN) | up to 32 bar |
| Diameter range (DN) | 200-4000 mm |
| Pressure (PN) | up to 32 bar |
| Diameter range (DN) | 200-4000 mm |
| Pressure (PN) | up to 32 bar |
| Diameter range (DN) | 200-4000 mm |
| Pressure (PN) | up to 32 bar |
| Diameter range (DN) | 200-4000 mm |
| Pressure (PN) | 1 bar |
| Diameter range (DN) | 200-4000 mm |
| Pressure (PN) | up to 10 bar |
