App-NC Line

Non-circular profiles

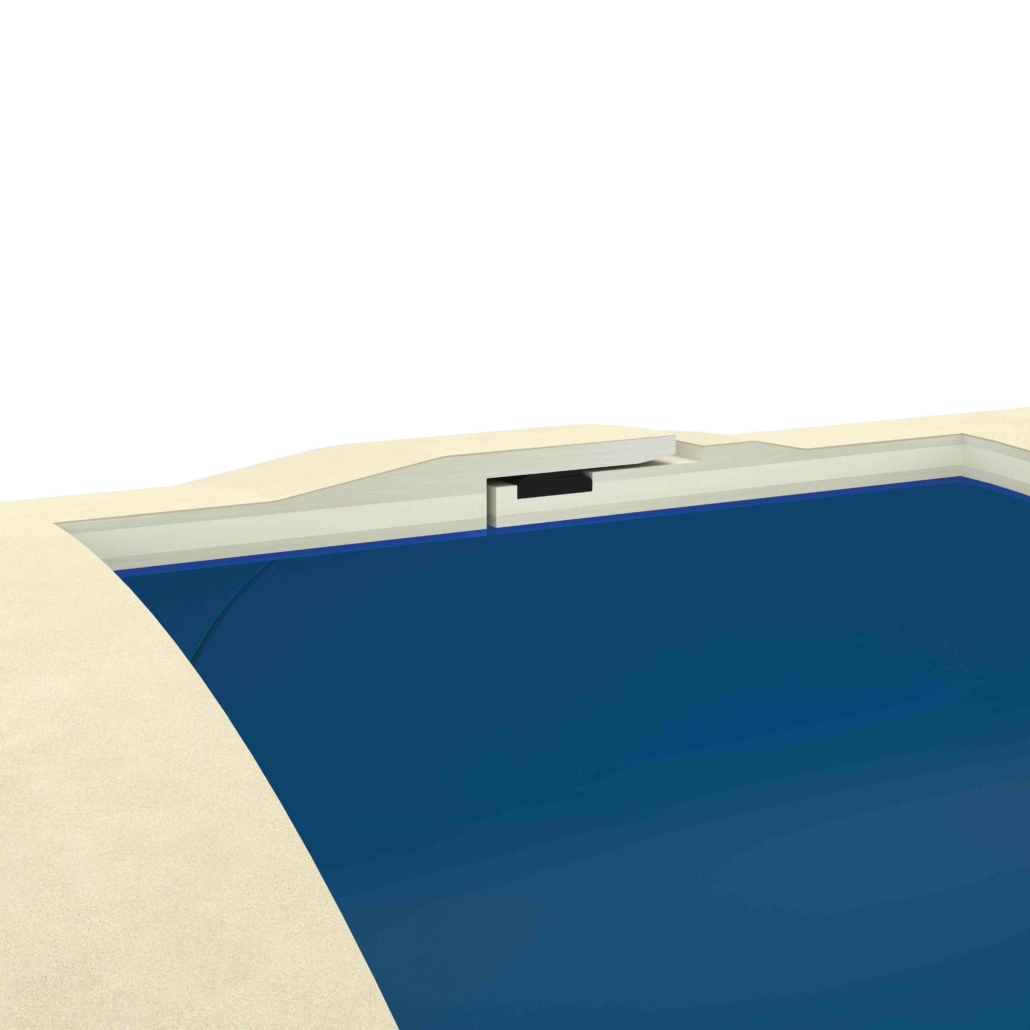

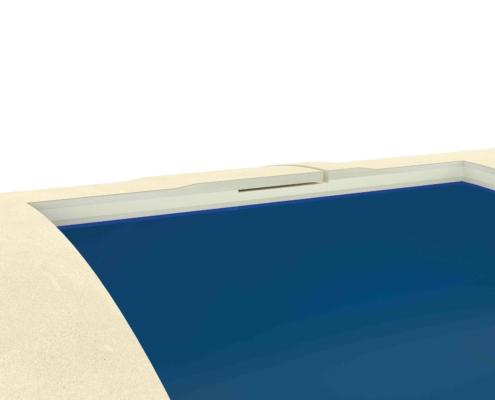

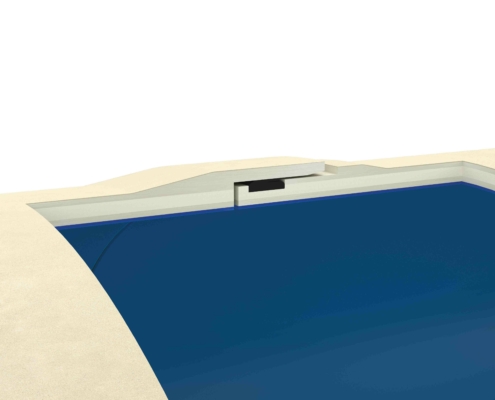

Jointing of Amiblu NC Line pipes

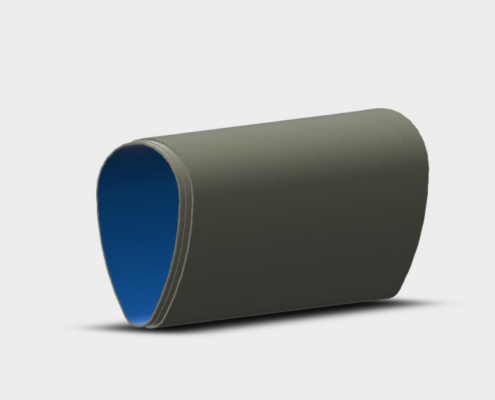

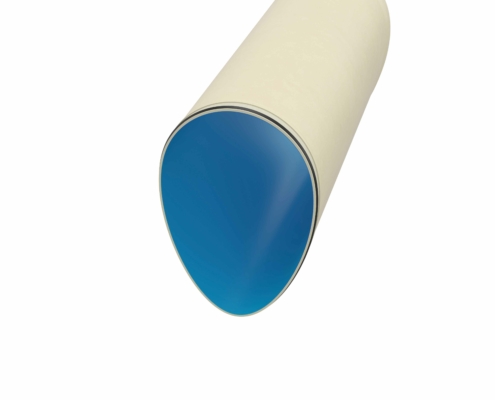

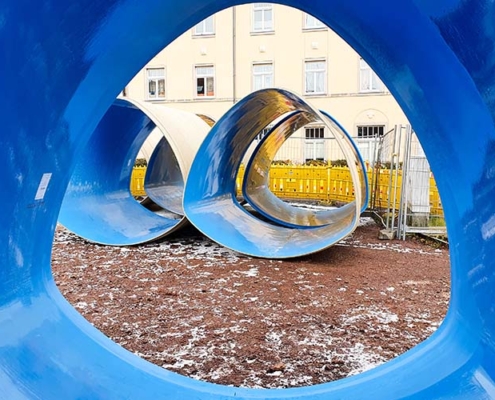

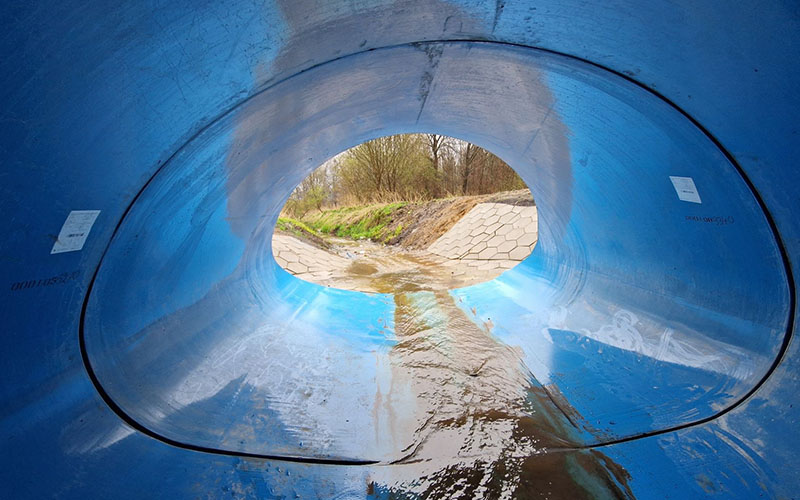

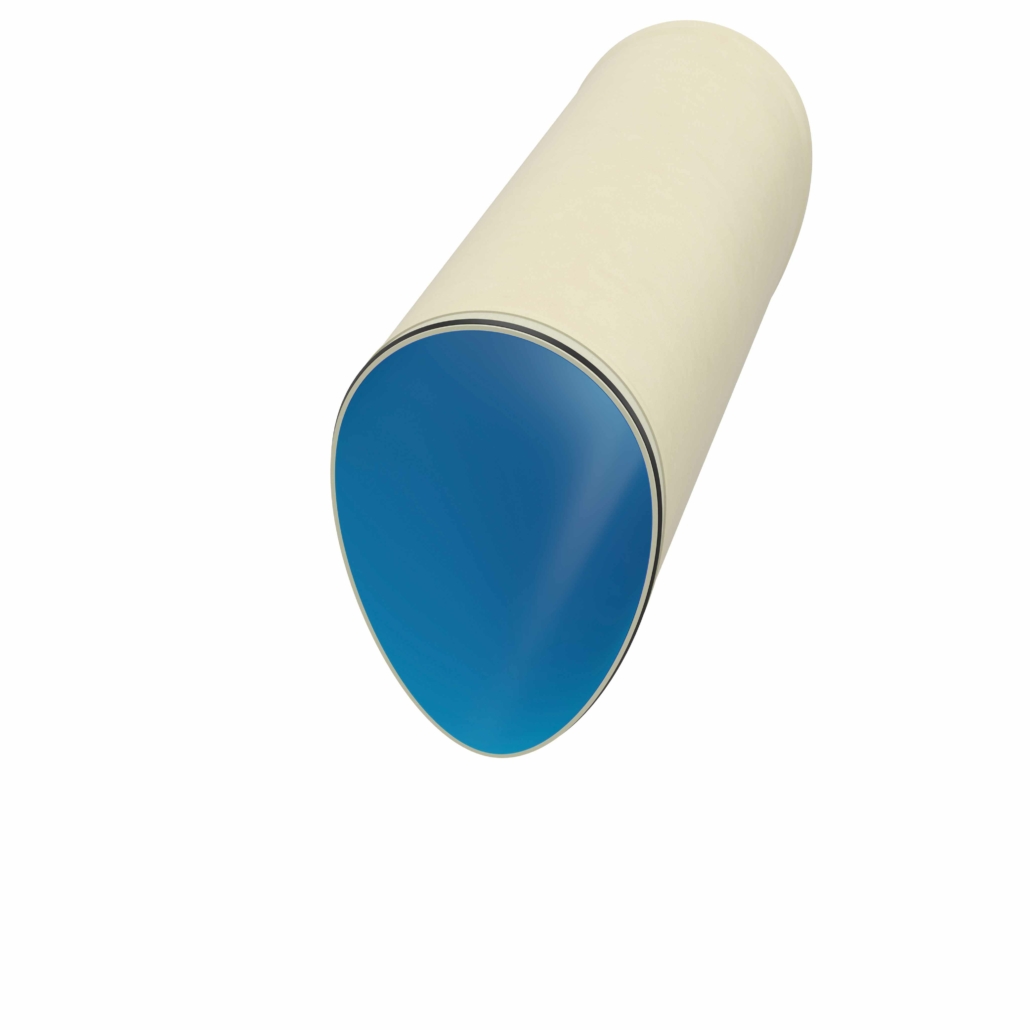

The egg shape profile is ideal for combined sewer systems. The narrow profile in the lower section of the pipe ensures a good water flow for sewage, while the upper and wider section handles heavy rain.

Nominal size*	300-4000 mm
Pressure (PN)	1 bar
Nominal lengths	500-3000 mm
Thickness	Load-carrying or non load-carrying profiles available

* Nominal size referring to ISO 16611, i.e., maximum inner height and breadth. The above-mentioned are the most commonly used profiles. Other profiles are available on request. Most profiles can be manufactured with a dry-weather channel.

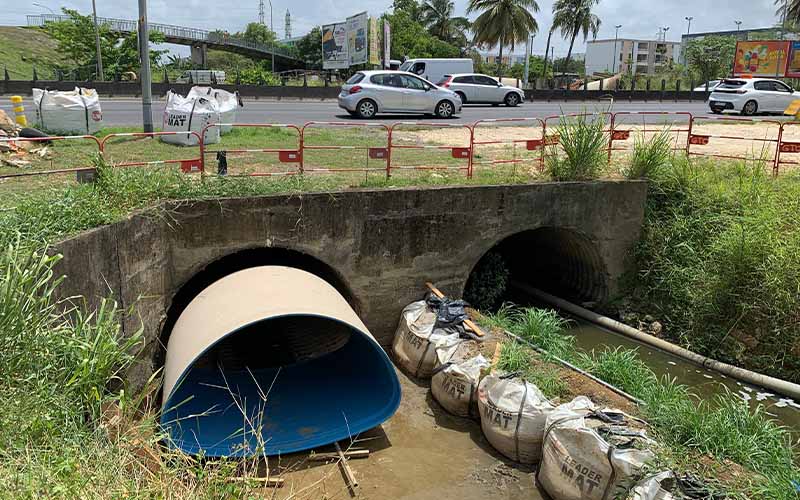

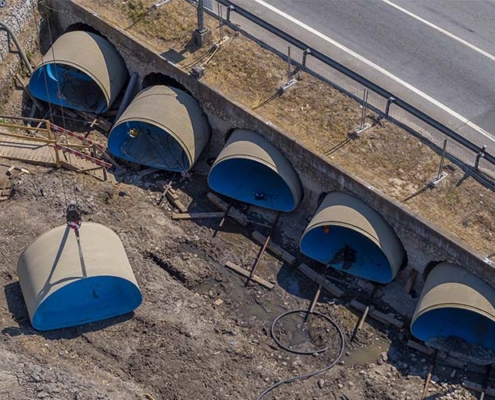

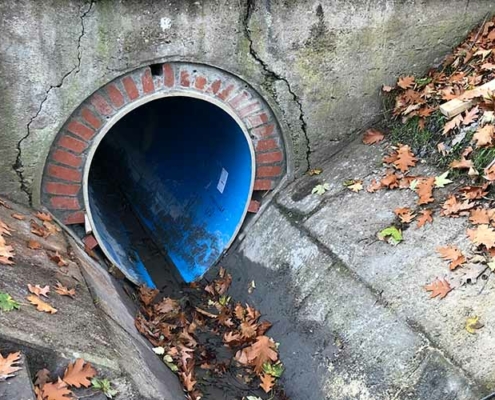

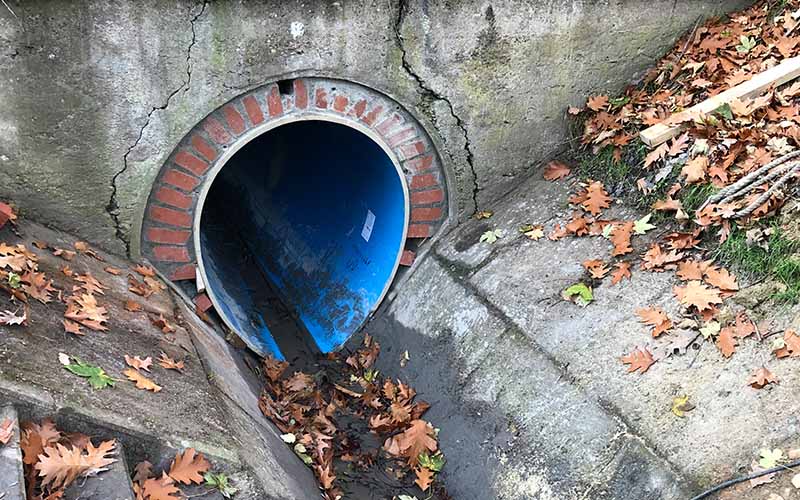

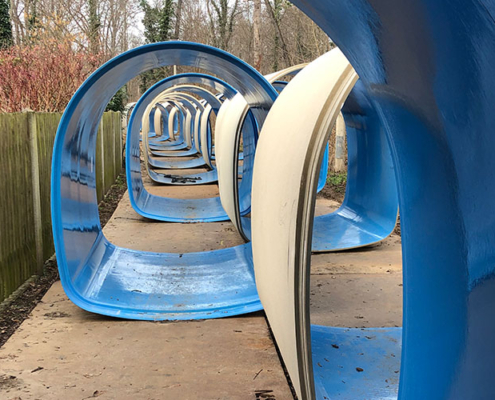

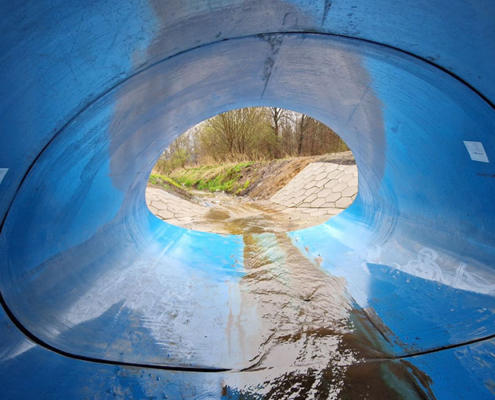

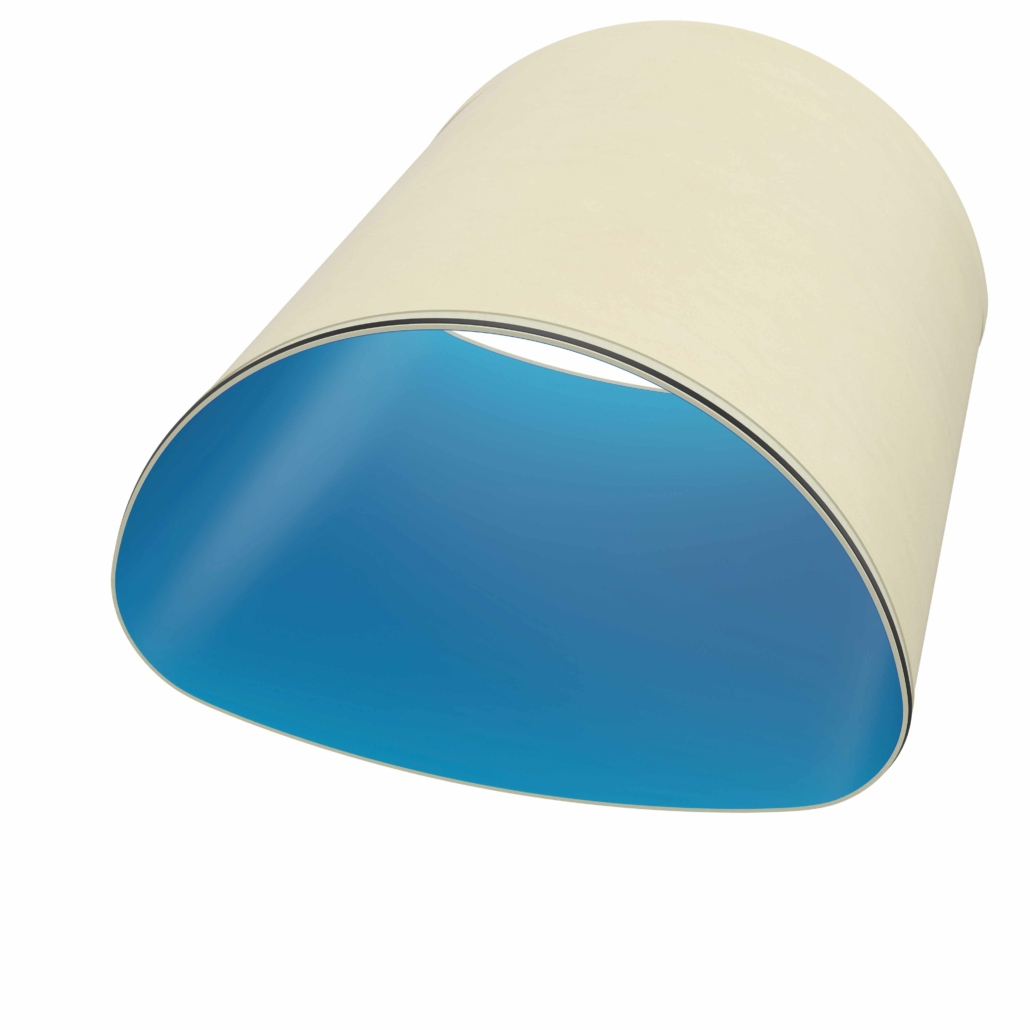

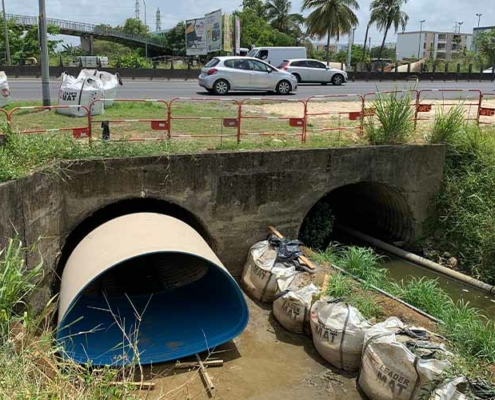

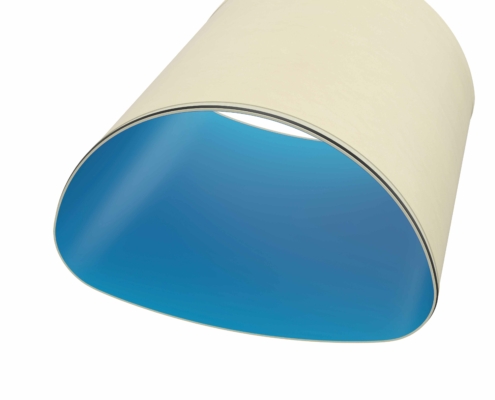

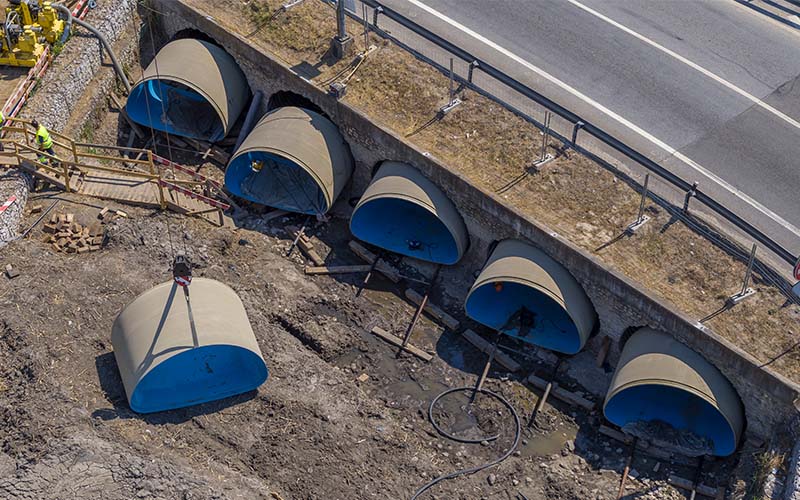

The arch profile is ideal for culverts under the road, to collect streams and small rivers. The shape allows for inspection by personnel.

Nominal size*	300-4000 mm
Pressure (PN)	1 bar
Nominal lengths	500-3000 mm
Thickness	Load-carrying or non load-carrying profiles available

* Nominal size referring to ISO 16611, i.e., maximum inner height and breadth. The above-mentioned are the most commonly used profiles. Other profiles are available on request. Most profiles can be manufactured with a dry-weather channel.

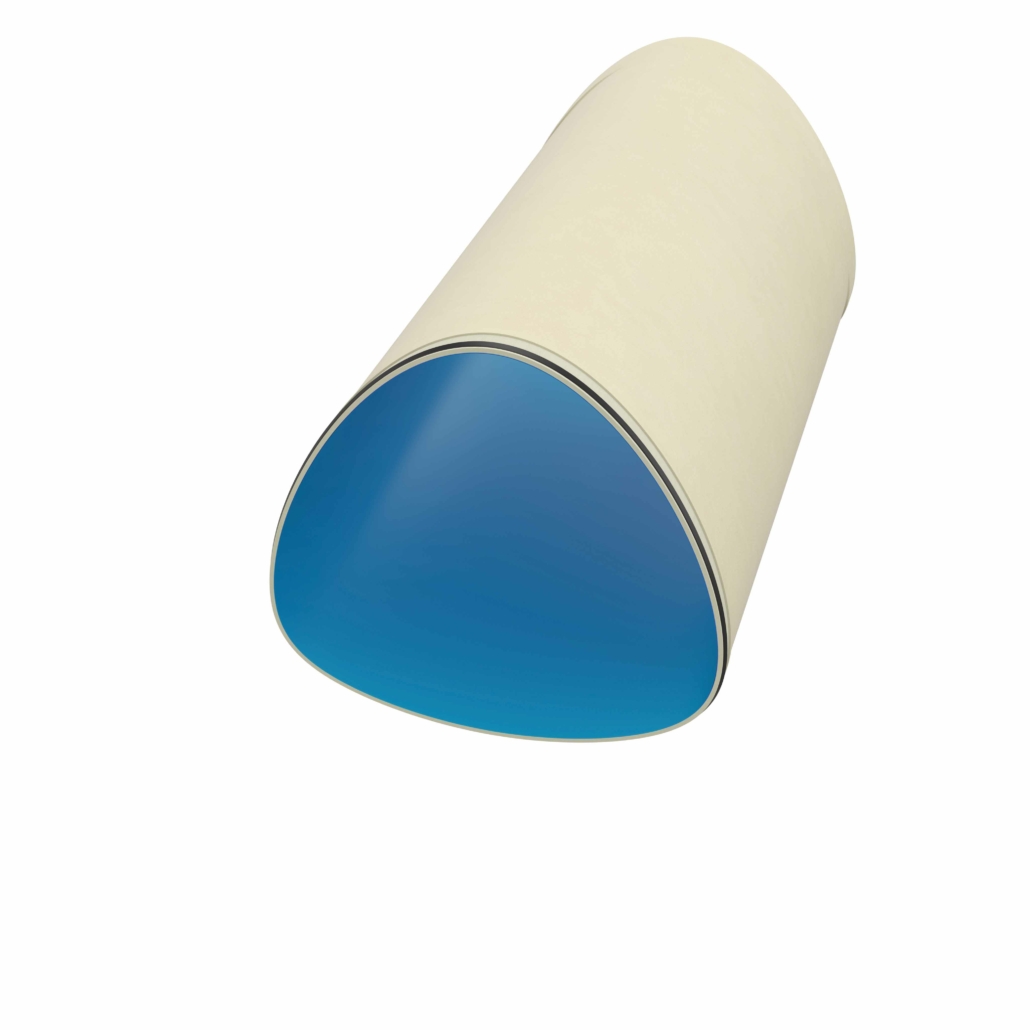

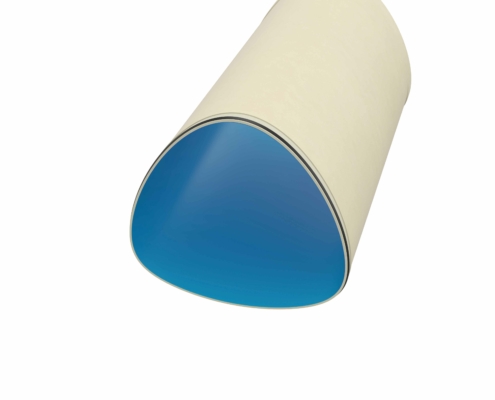

The parabolic profile is ideal for culverts under the road, to collect streams and small rivers. The shape allows for inspection by personnel.

Nominal size*	300-4000 mm
Pressure (PN)	1 bar
Nominal lengths	500-3000 mm
Thickness	Load-carrying or non load-carrying profiles available

* Nominal size referring to ISO 16611, i.e., maximum inner height and breadth. The above-mentioned are the most commonly used profiles. Other profiles are available on request. Most profiles can be manufactured with a dry-weather channel.
